Teploceramic ТСМ-RA 550


Power550 W
Heating area11 m2
Heating volume28 m3
Size900x450x15 mm
Temperature90 C
Weight15 kg
Voltage220 V
Current frequency50 Hz
Warranty term5 years
On/off buttonno
Manufacturer“Teploceramic” LLC
Manufacturer countryUkraine

Out of stock

Category: Tags: , Product ID: 2587


Description: Heaters ТСМ-RA-550

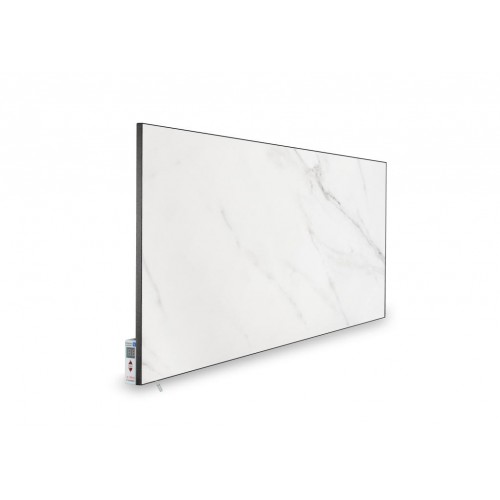

The economic infrared panel  TCM-RA 550 is the  new embodiment of the heater TCM-450, which is popular among customers. With numerous requests from customers, we installed the thermostat on the electric heater TCM 450, thereby automating the panel control and increasing its power to 550 W. Having saved the dimensions of the heater 450×900 mm, we increased the area of infrared heating of the room to 11 m2.

Functions of the built-in temperature regulator of ecological electric panels ТСМ-RA 550:

• temperature regulation of the electric panel. The internal temperature sensor allows you to set the heating limit of the panel from 40 C to 95 C and turn it off after reaching the set degrees;

• regulation of the room temperature (from 5 С to 35 С) with the help of the heater Teploceramic. The external air sensor fixes the current room temperature, compares it with the set temperature on the regulator and turns off the infrared panel after reaching the set temperature.

Advantages of economic infrared heater Teploceramic with regulator:

• Safe heater. Suitable for kindergartens, schools, children’s rooms. Resistent against power outages and voltage drops.

• Smart wall-mounted heater. Control of switching on and off according to the temperature of the ceramic panel and the air temperature.

• Economic electric heater. Infrared heating is the economic kind of premises heating.

Electric heaters are manufactured in the city Kiev.


Equipment: Heaters ТСМ-RA-550

The set of infrared heater Teploceramic TCM-RA: • Packing • Heater • Power cord with plug • Built-in regulator • Universal metal fasteners • M8 dowel with screws • Installation scheme • Operating instructions (passport-guarantee). The packaging of the panel is made of three-layer corrugated cardboard and reinforced with foam plastic. It guarantees to the buyer the receipt of the goods without damage. The peculiarity of TCM-RA model is the integrated regulator, which makes it possible to control both the panel`s surface temperature and the air temperature in the room. It is possible to buy additional legs for the heater.


Manuales: Heaters ТСМ-RA-550

The thermostat on the heater has 2 heat management functions: • Heating control of the thermo panel surface. Allows you to limit the heating degree from 40 to 95 degrees. This function was developed at the request of the foreign client, whose legislation obliges (irrespective of the heater safety) to install in the children’s institutions only heaters with the ability to control the heating of the front side. • Control of the air warming in the room. Allows you to set the desired room temperature and automatically turns off the ceramic panel during reaching the specified degrees (from 5 C to 35 C) by the user. This function – not only contributes to maintaining the constant comfortable temperature, but also to saving electricity. The ability to set the minimum air temperature in the empty room, shortens the heater’s operating time and, accordingly, reduces the power consumption of the infrared panel Teploceramic.
